Feasibility study, Murrawombie Open Pit Mine, NSW, Australia

THE PROJECT

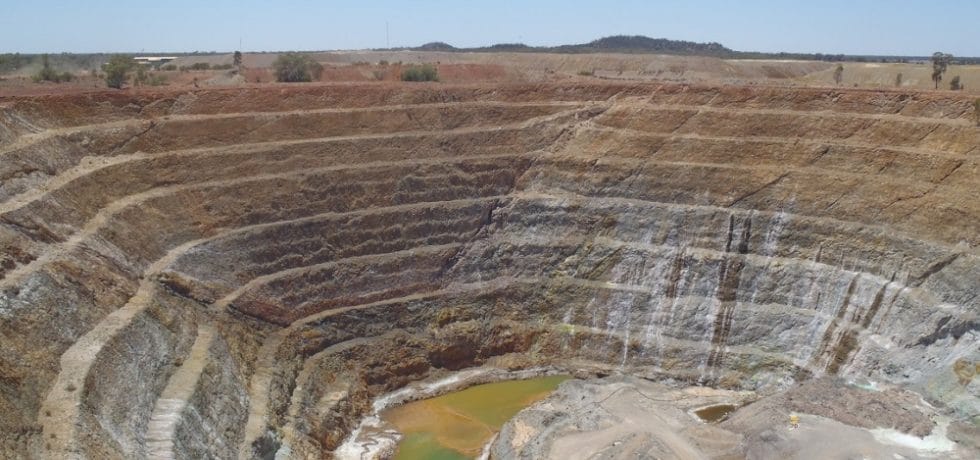

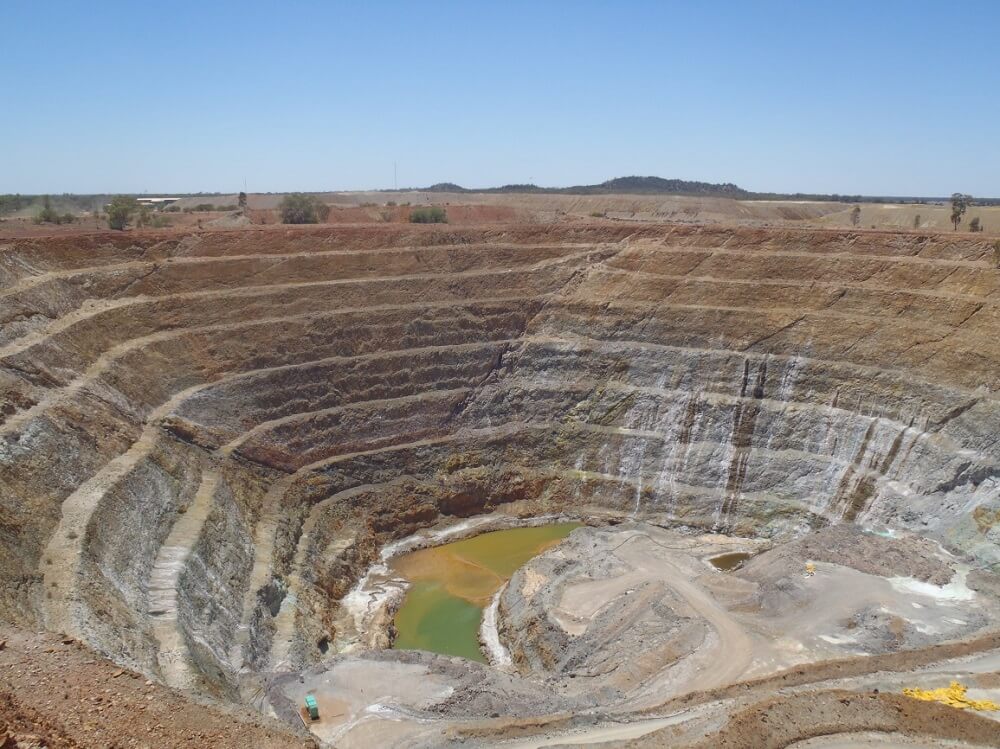

The Murrawombie Open Pit Mine, historically known as Girilambone Mine, is in the central west of NSW and 2 km west of the town of Girilambone. Mining of oxide and transitional copper ore in the 1990s produced an open-cut pit approximately 150 m deep. The resource is a massive sulphide deposit with existing pit walls comprising meta-sediments which are highly foliated and structurally complex.

PSM was engaged to complete a feasibility stage geotechnical study to provide pit slope design parameters for the proposed cut-back of existing pit walls.

ENGINEERING AND TECHNICAL OPPORTUNITIES

The resource is a massive sulphide deposit with existing pit walls comprising meta-sediments which are highly foliated and structurally complex. Low-grade metamorphic sequences comprised highly foliated silicified meta-sediments. There was also restricted access to pit walls for collection of relevant geotechnical data.

APPROACH AND INNOVATION

PSM’s tailored approach included:

  • Completion of feasibility studies for a cut-back affecting three of the existing pit walls and deepening the pit by about 70 m, using performance of existing pit walls and results of stability analyses

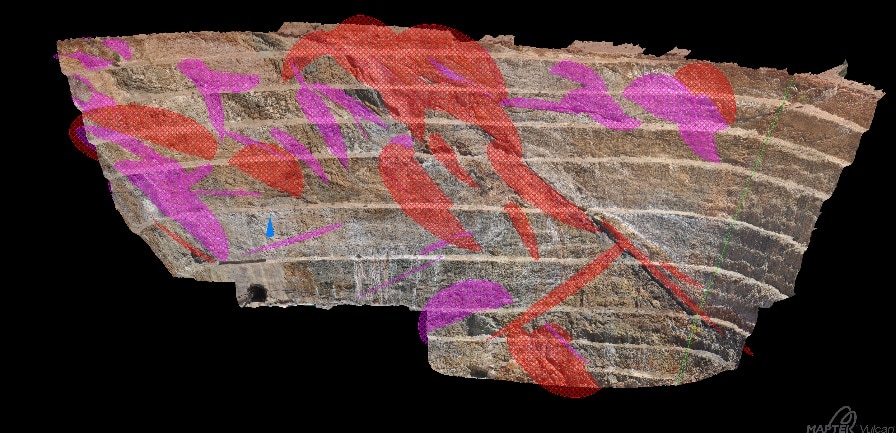

  • Provision of reliable pit wall structural orientation data using photogrammetry
  • Assessment of rock characteristics using in-pit geotechnical mapping
  • Development of the geotechnical model, using existing data, photogrammetry and in-pit mapping results
  • Assessment of slope stability of the proposed cut-back walls using kinematic and statistical methods, and numerical modelling using limit equilibrium methods.

OUTCOMES

PSM successfully completed feasibility studies, identified design risks and provided mitigation strategies.

Services: #Geotechnical #girilambone #gririlambonemine #murrawombie #openpit #slopestability #sulphidedeposits
